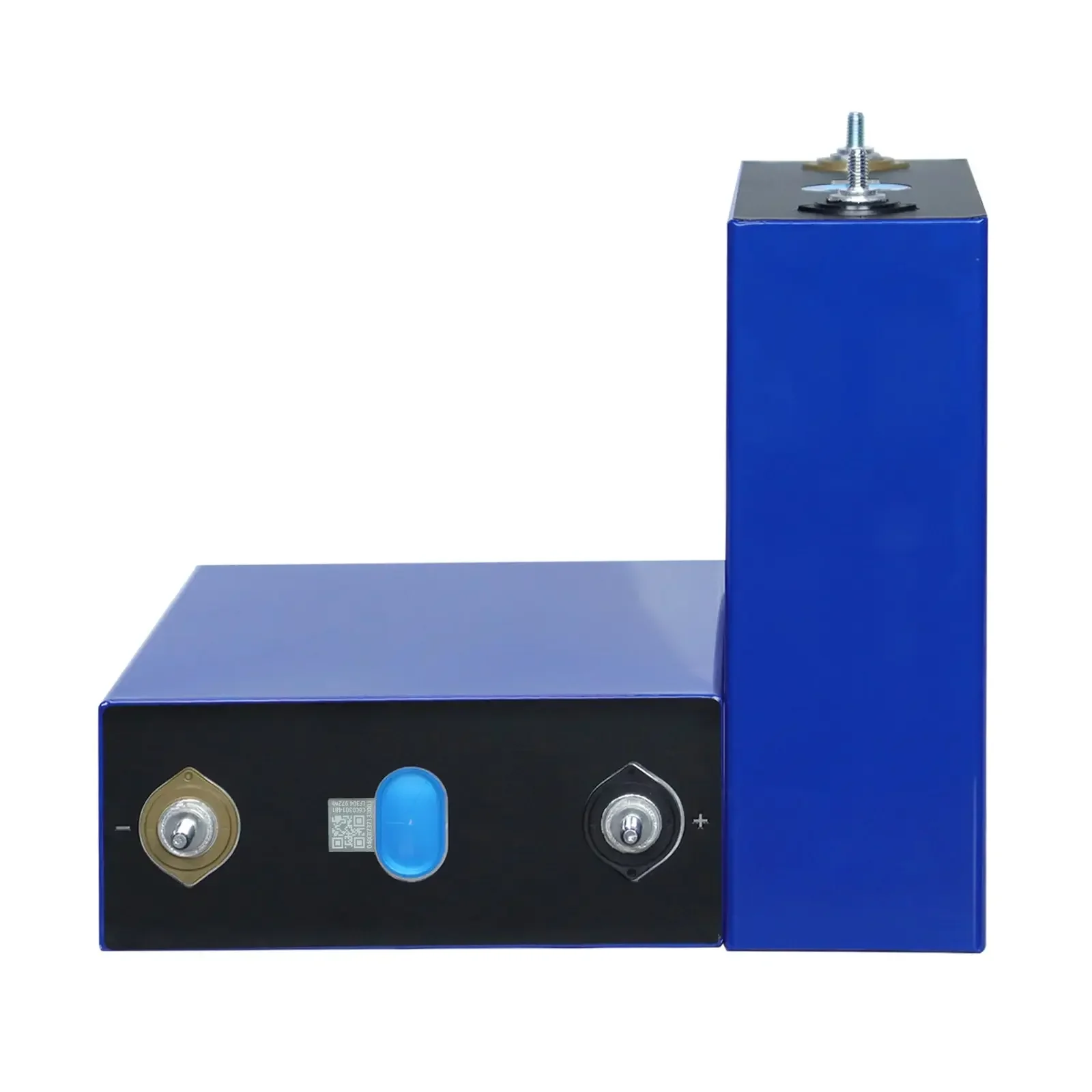

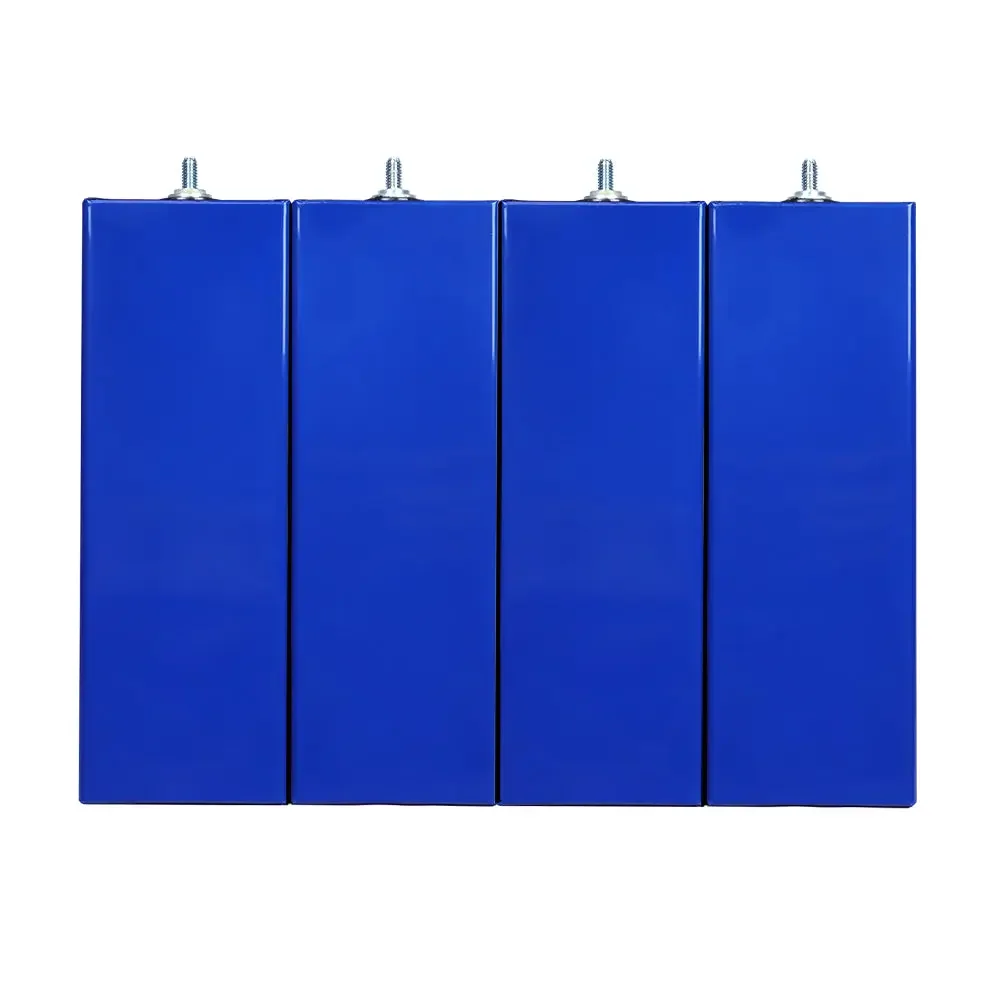

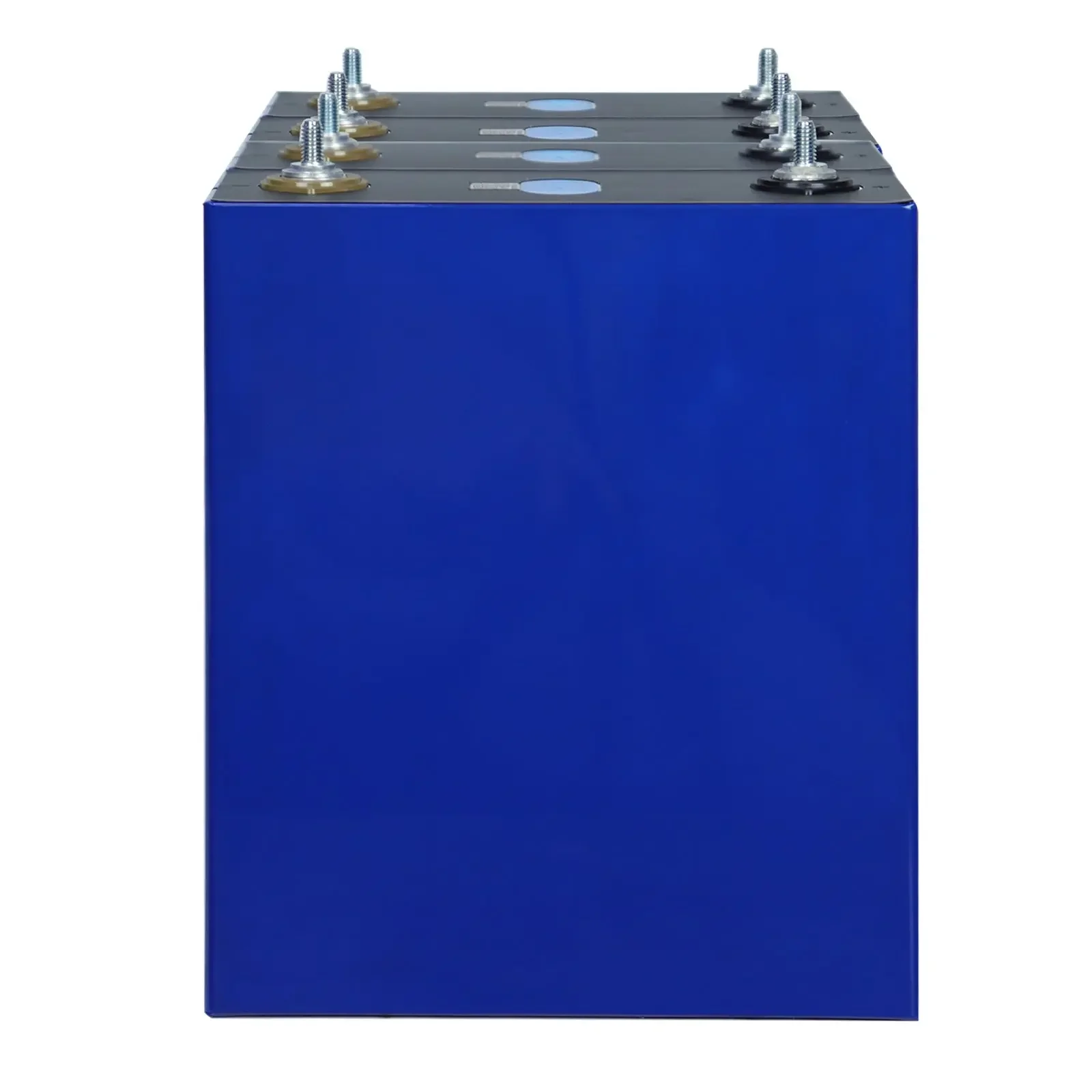

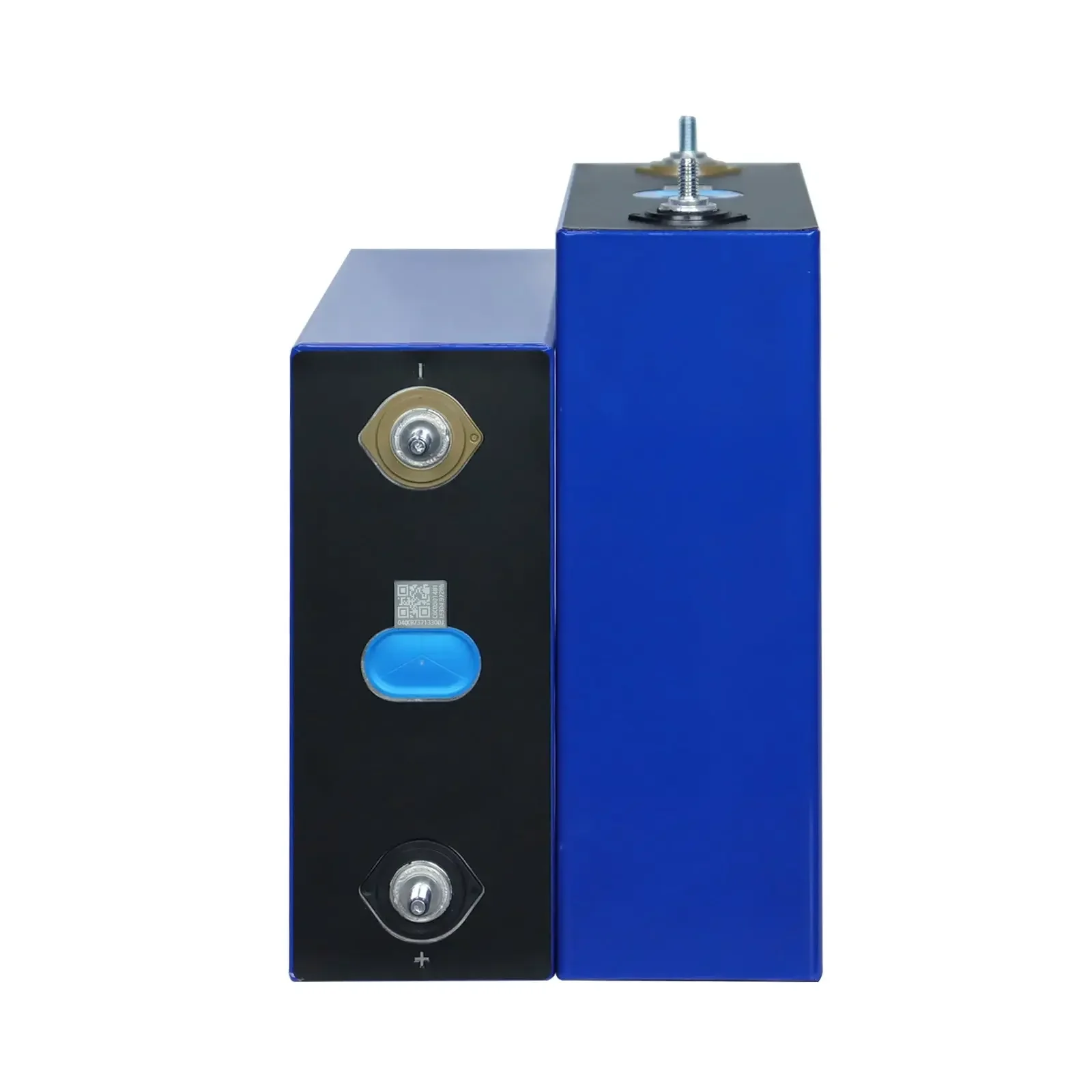

EVE 304Ah LiFePO4 Battery Cells - Brand New Grade A with QR Code

Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal voltage: 3.2V
Operational voltage: 2.5 V – 3.65 V
Nominal capacity: 304Ah
AC impedance resistance: ≤0.5mΩ
Weight: 5.49±0.3kg
Dimensions (mm): 208.8(Pole included)*173.5*72±1

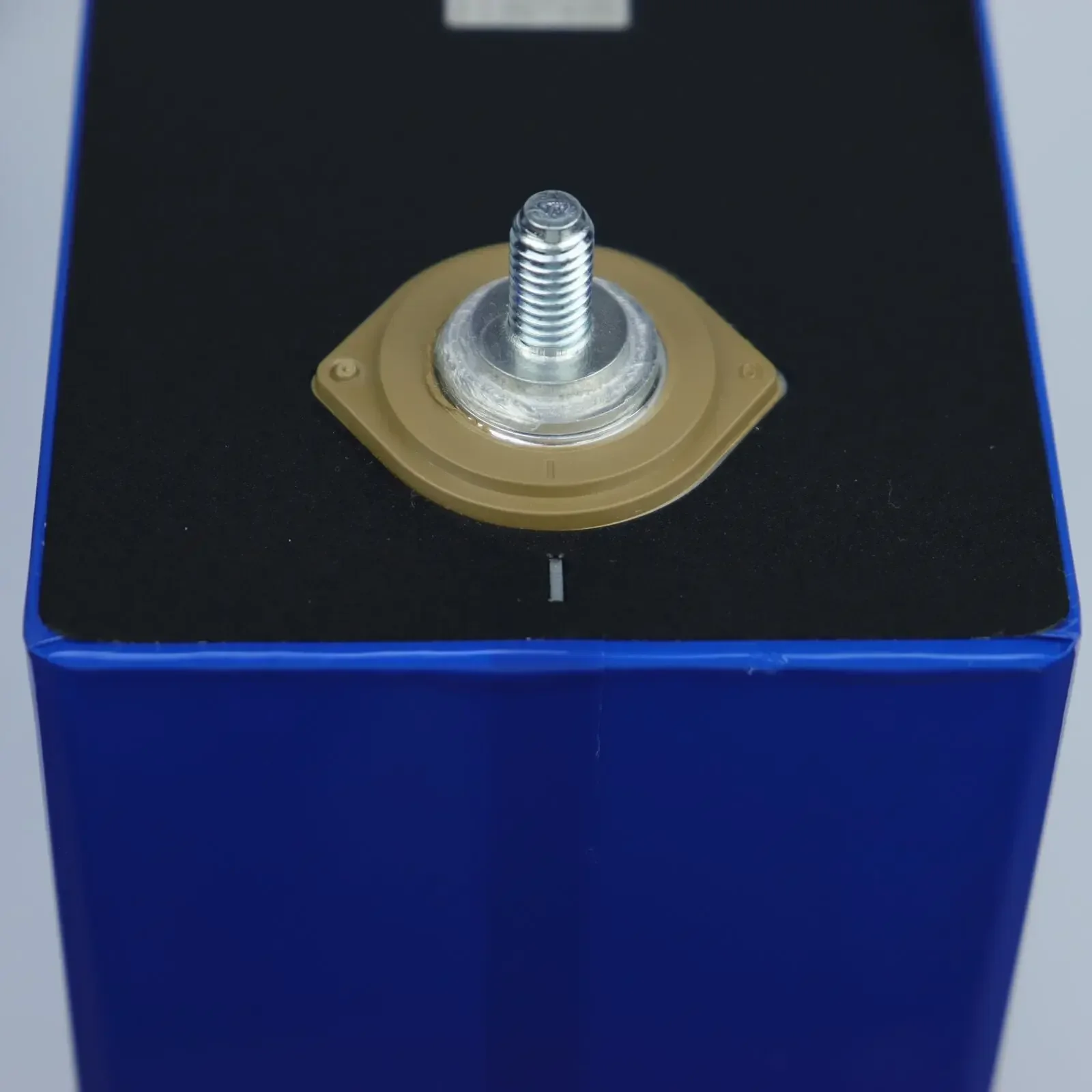

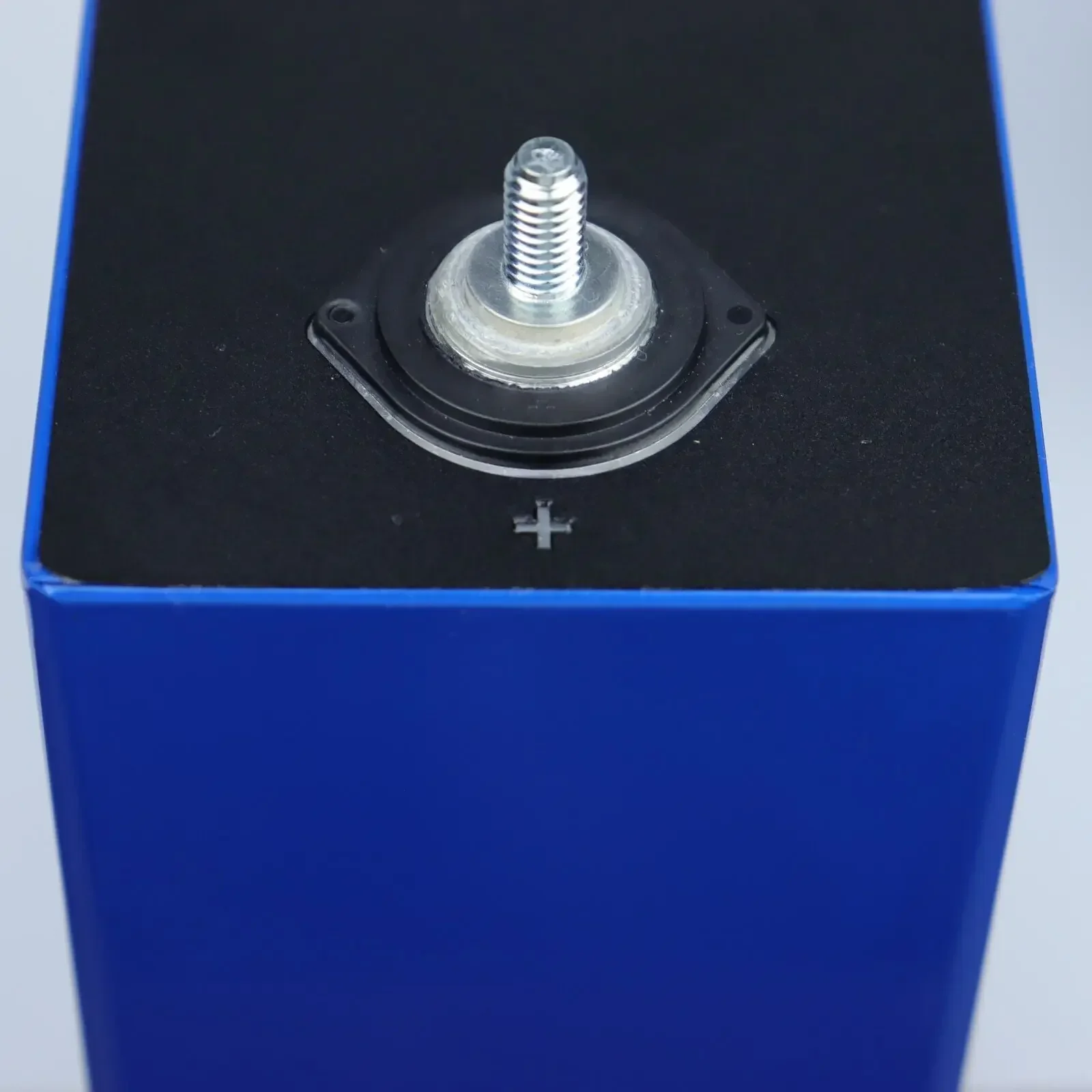

Terminal: M6 Laser Welding Screw Hole
Cycle life: ≥3500 cycles (1C/1C, 25±2℃, SOC≥80%)
Standard charge/discharge current: 0.5C/0.5C
Standard charge/discharge cut-off Voltage: 3.65V/2.5V
Max Continuous charge/discharge current: 250A/250A
Max Pulse charge/discharge current(30s): 2C/2C
Recommended SOC window: 10%～90%
Residual Capacity loss: Per month≤3.0%
Charging temperature: 0℃~60℃
Discharging temperature: -30℃~60℃

Download Document:

EVE 304Ah LiFePO4(LFP) Battery Cell Product Specification.pdf

Product Application:
Electric vehicle, RV, electric bicycles/scooters, golf carts, boats, trolling Motor, off-gird solar energy storage, and ESS.

Product Feature:

• Highly automated production equipment to ensure battery consistency.
• Square aluminum shell structure, high-precision explosion-proof valve design, good safety performance.
• Low internal resistance, high discharge rate, and stable discharge platform.
• Green environment, ISO14000 approval, products meet GB and UN criteria, and ROHS compliant.
• Long cycle life.

NOTE!

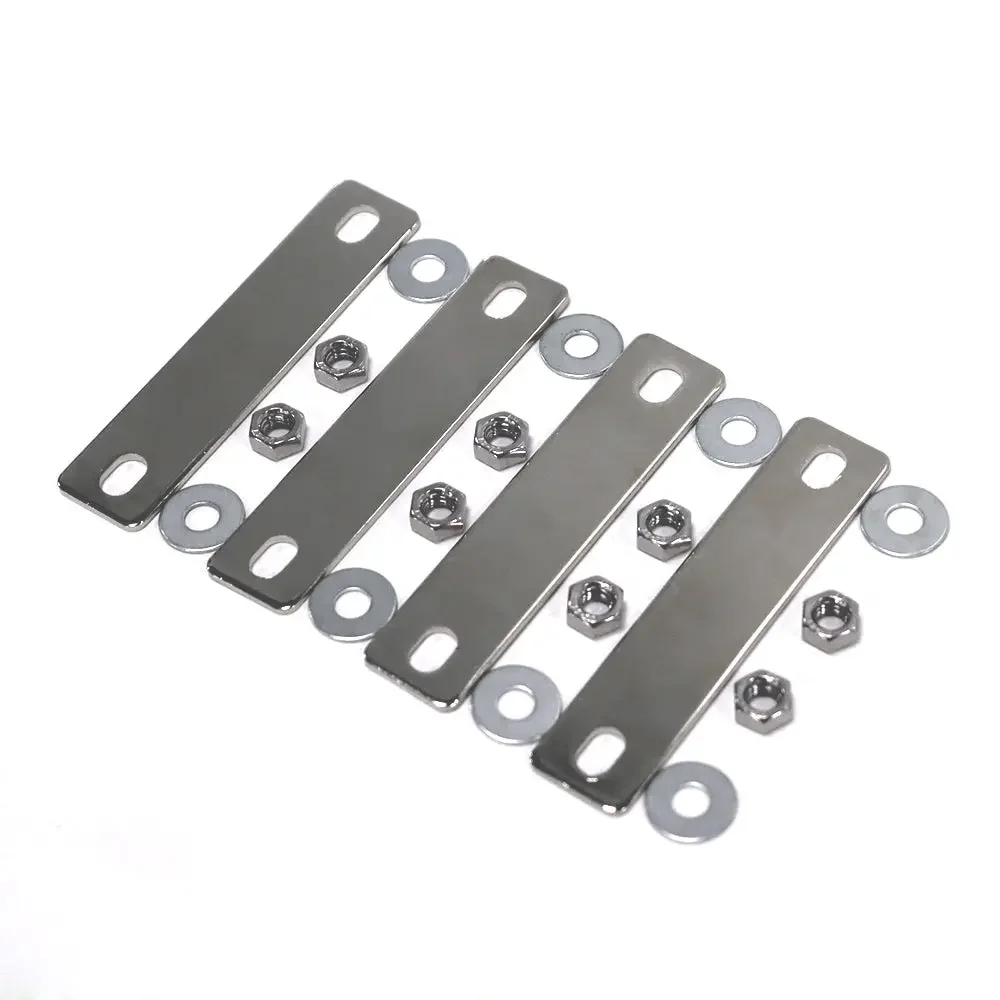

1. One Cell will come with 1 busbar, 2 screw caps, 2 shims for free. (e.g. 4 pcs Cells will come with 4 pcs busbars, 8 pcs screw caps and 8 pcs shims. )
2. Each cell shall be used under the strict monitor, control, and protection by the BMS.
3. Before the first use, always charge the cells to full voltage. | FAQ: LiFePO4 battery charging guide.

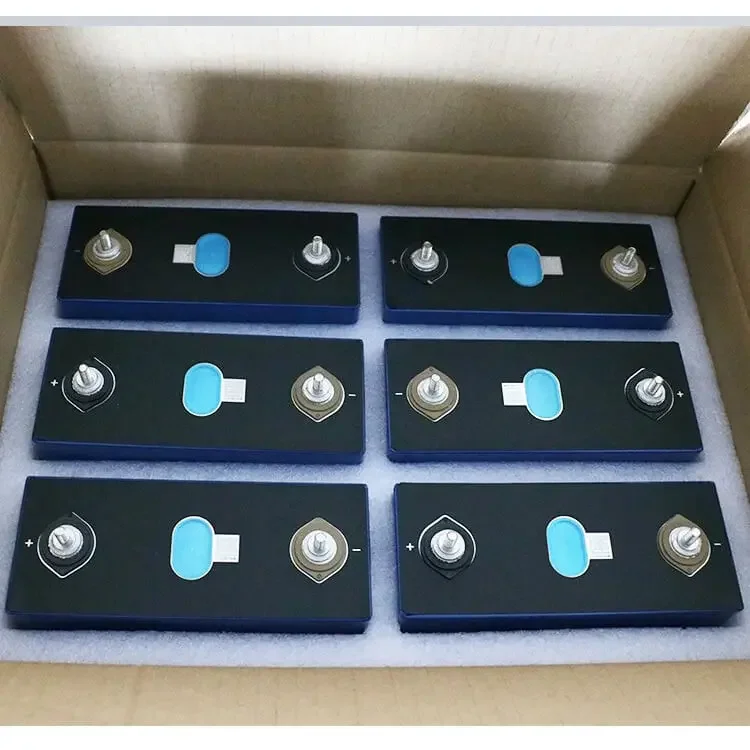

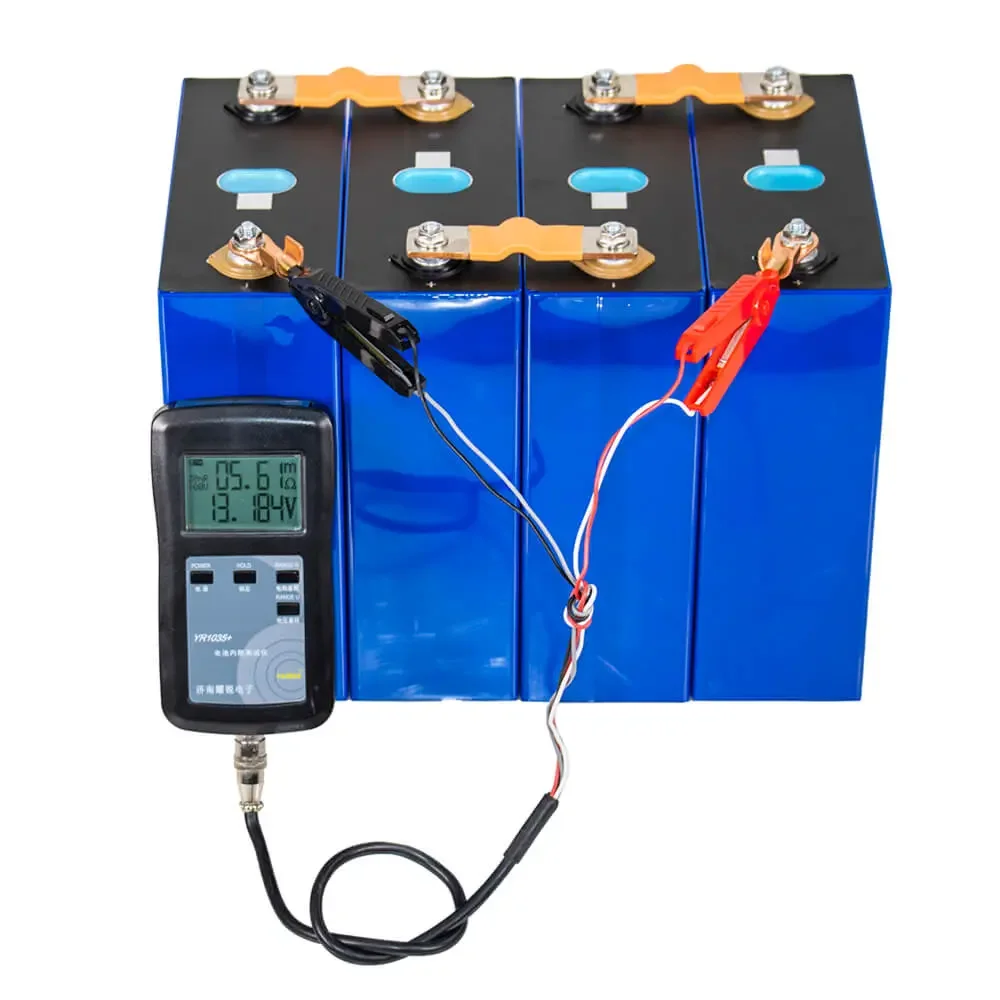

4. We will match (capacity, voltage, resistance) all cells before delivery.
5. The battery is suitable for DIY lovers with experience.
