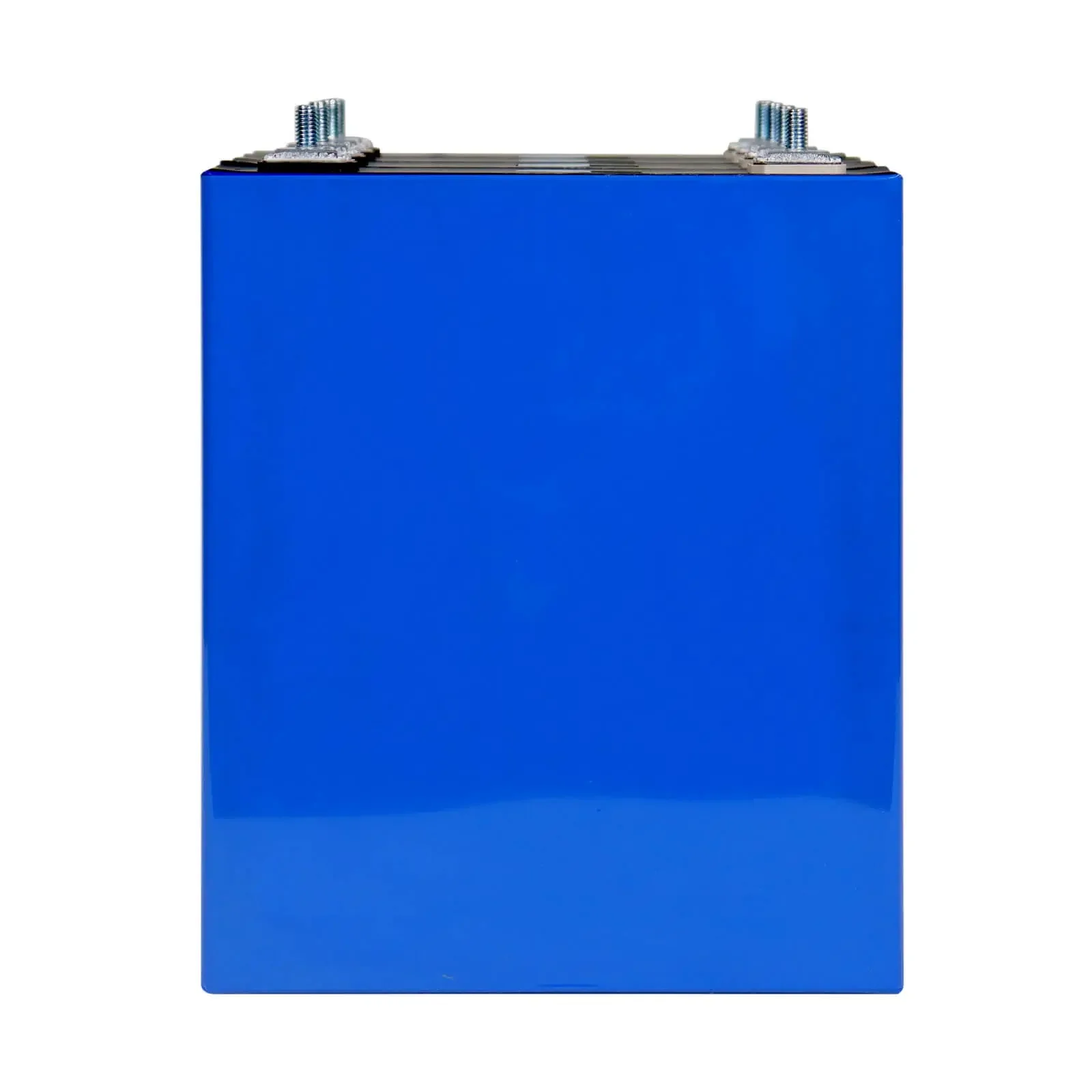

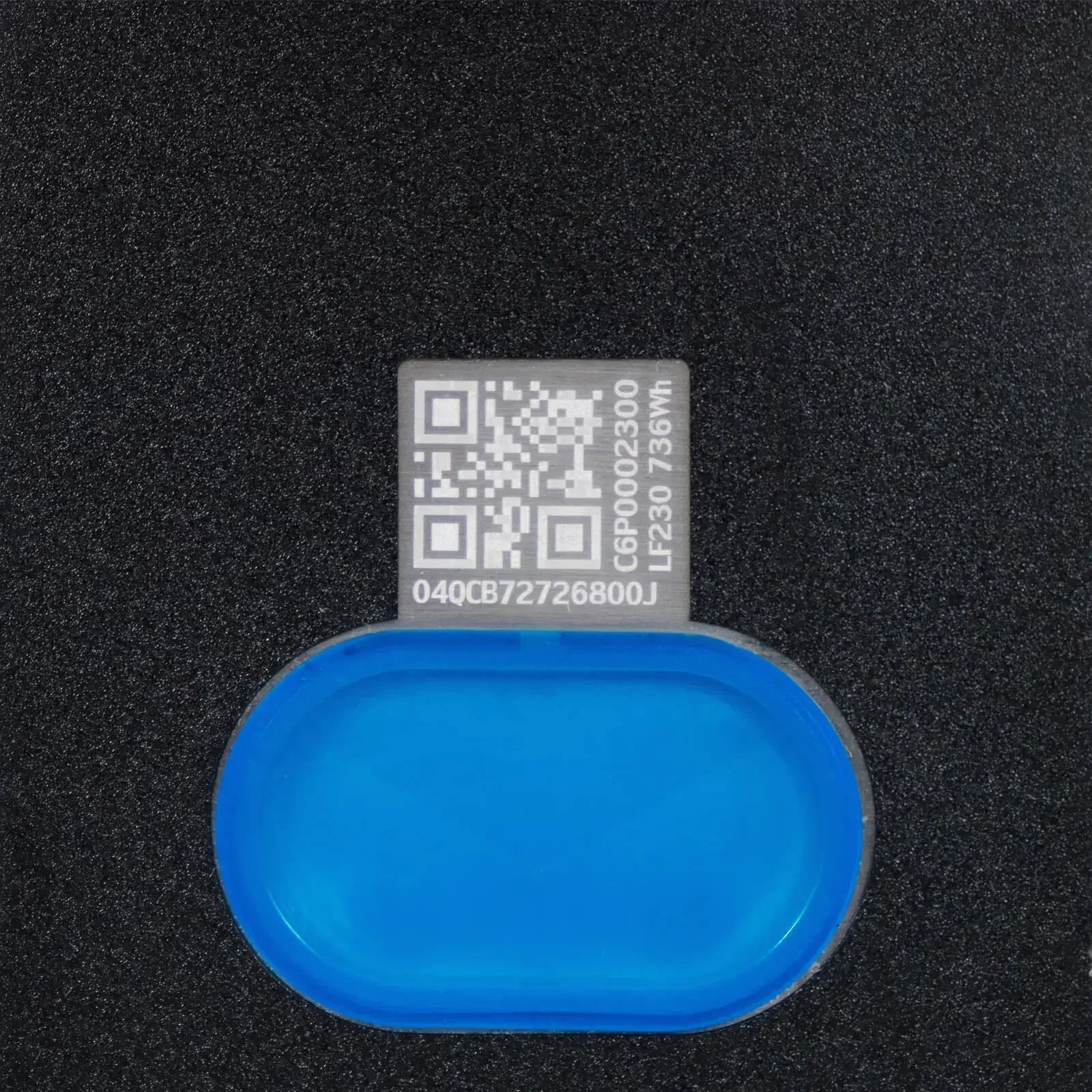

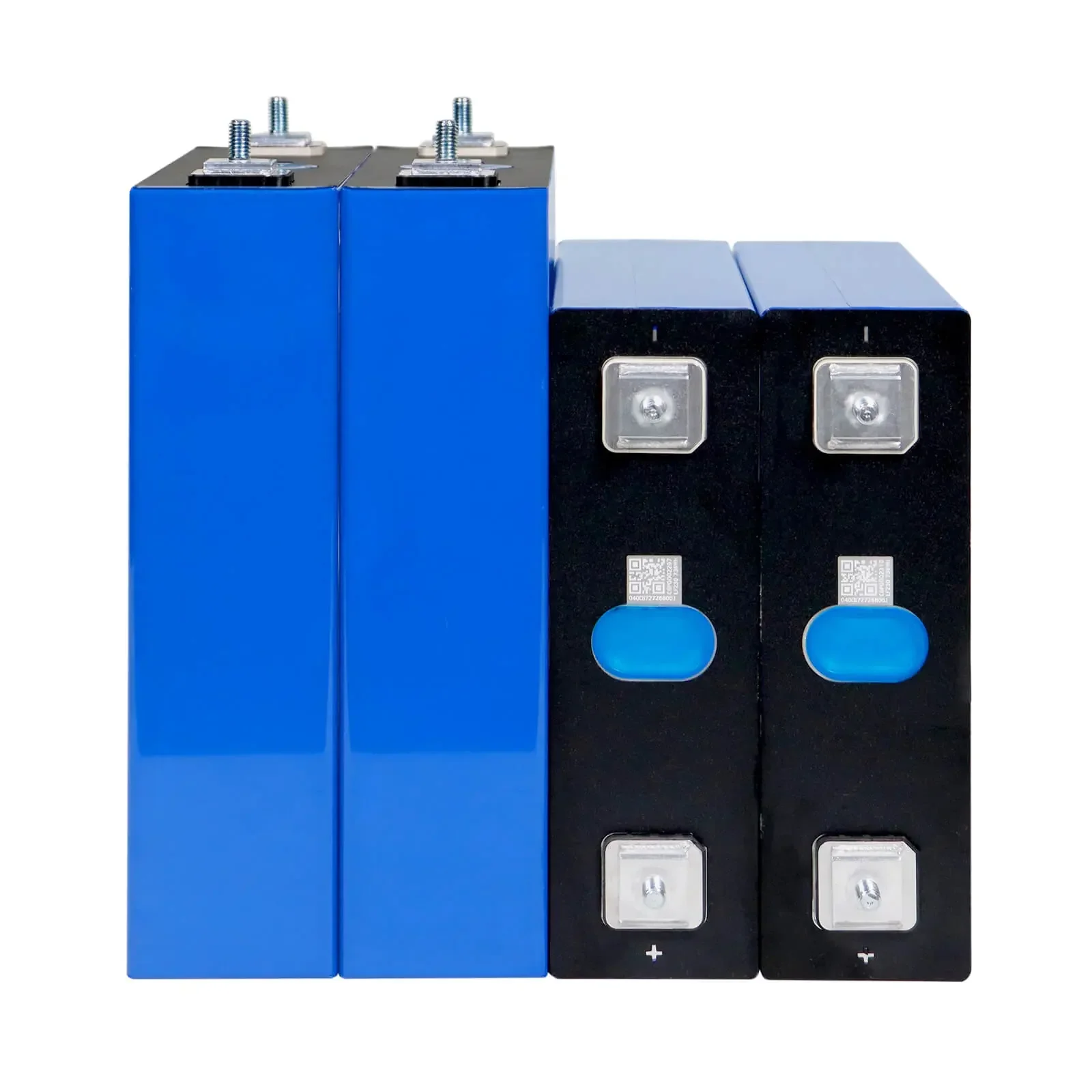

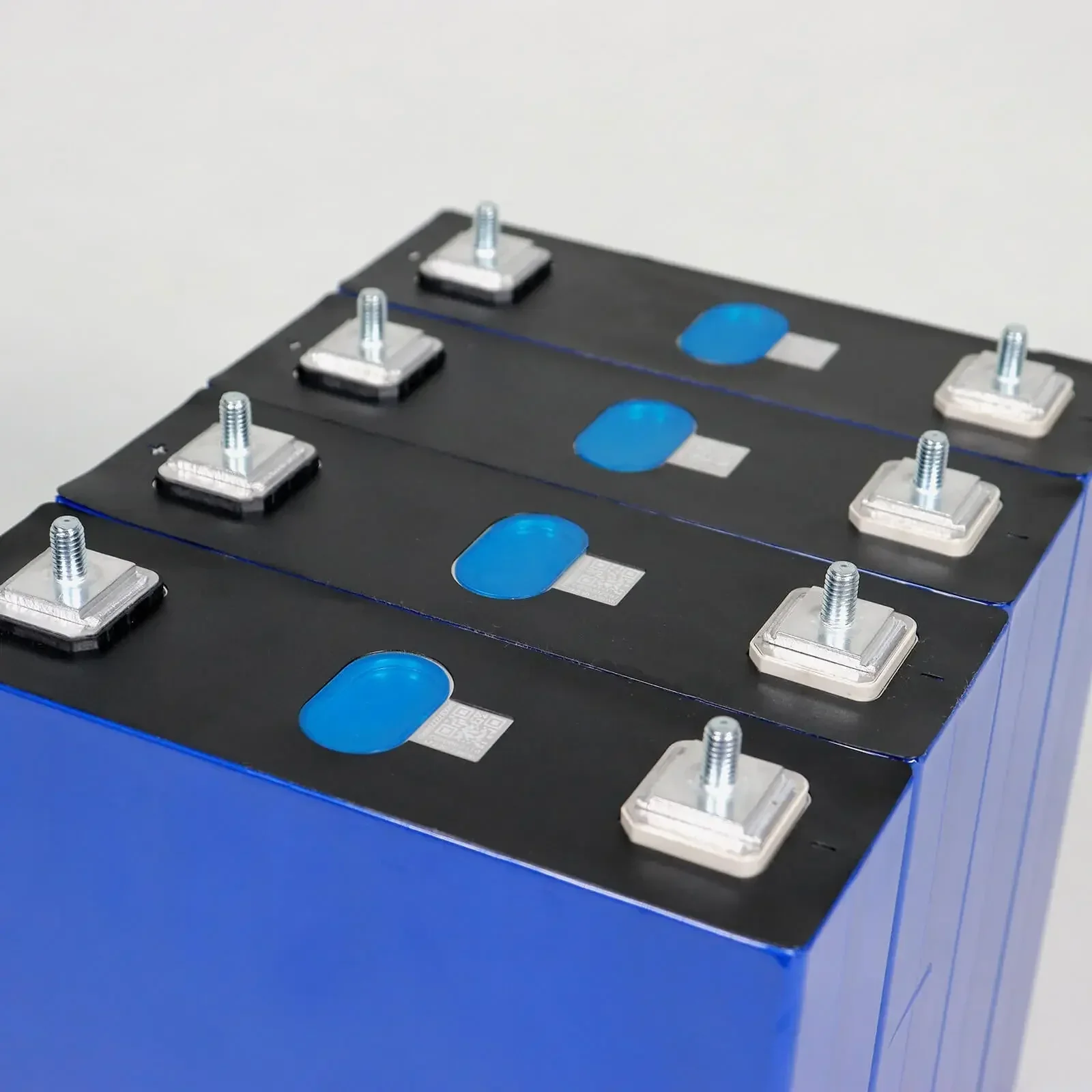

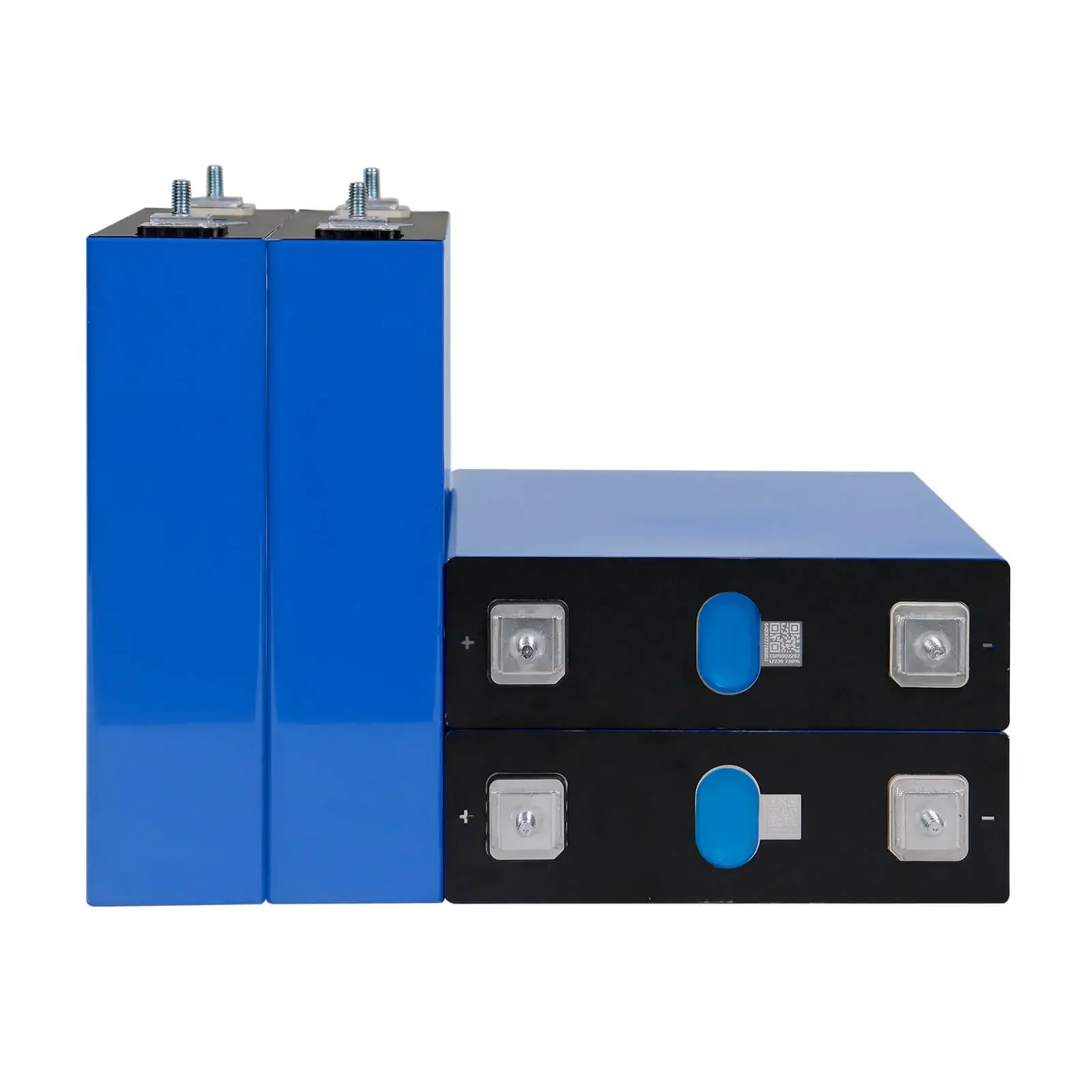

EVE 230Ah LiFePO4 Battery Cells - Brand New Grade A with QR Code

Specification

Battery brand: EVE
Battery model: LF230
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal voltage: 3.2V
Operational voltage: 2.5 V – 3.65 V
Nominal capacity: 230Ah
AC. 1kHz Impedance Resistance: ≤0.3mΩ
Weight: 4.11±0.1kg
Dimensions L*W*H (mm): 207.3(with Pole)*173.93*53.85

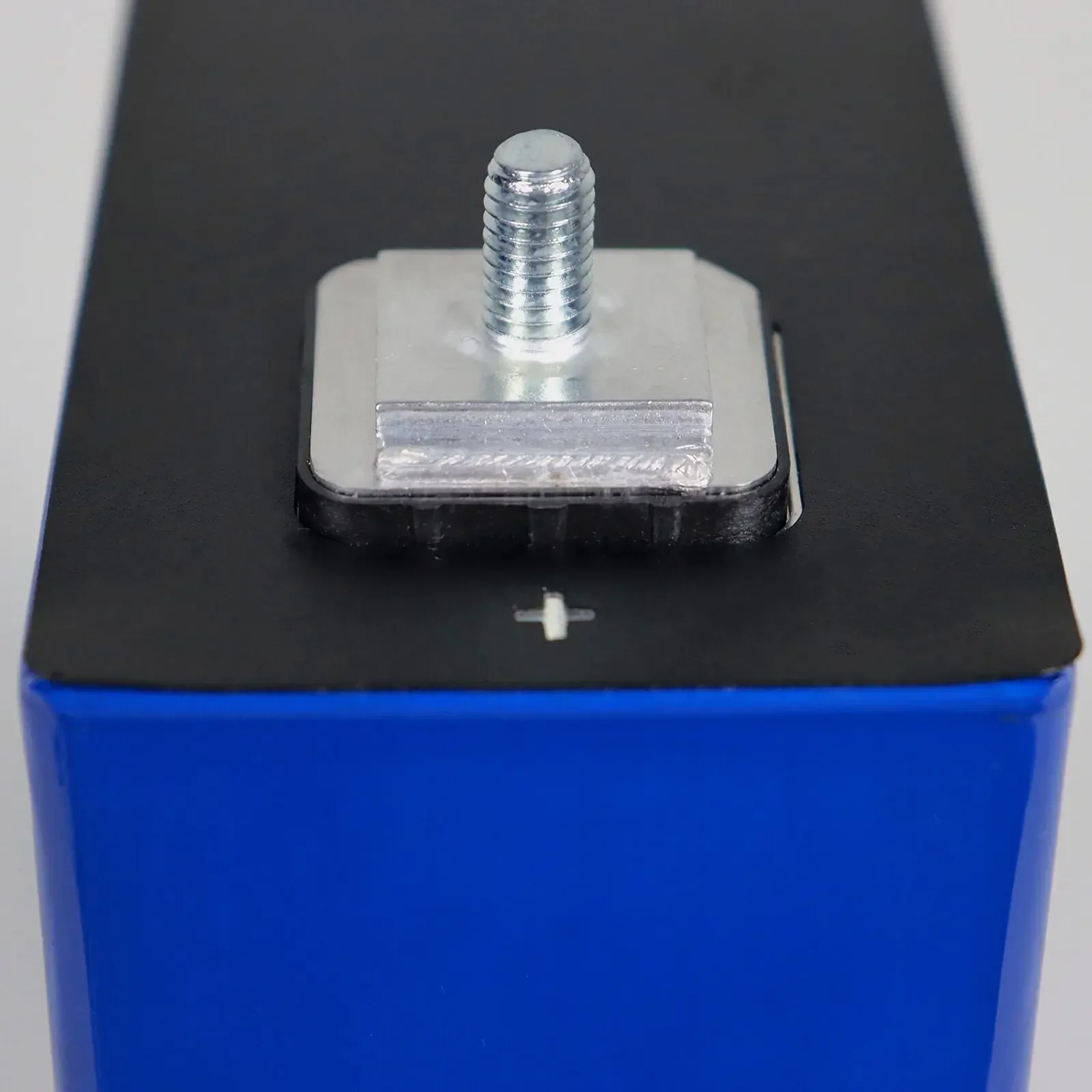

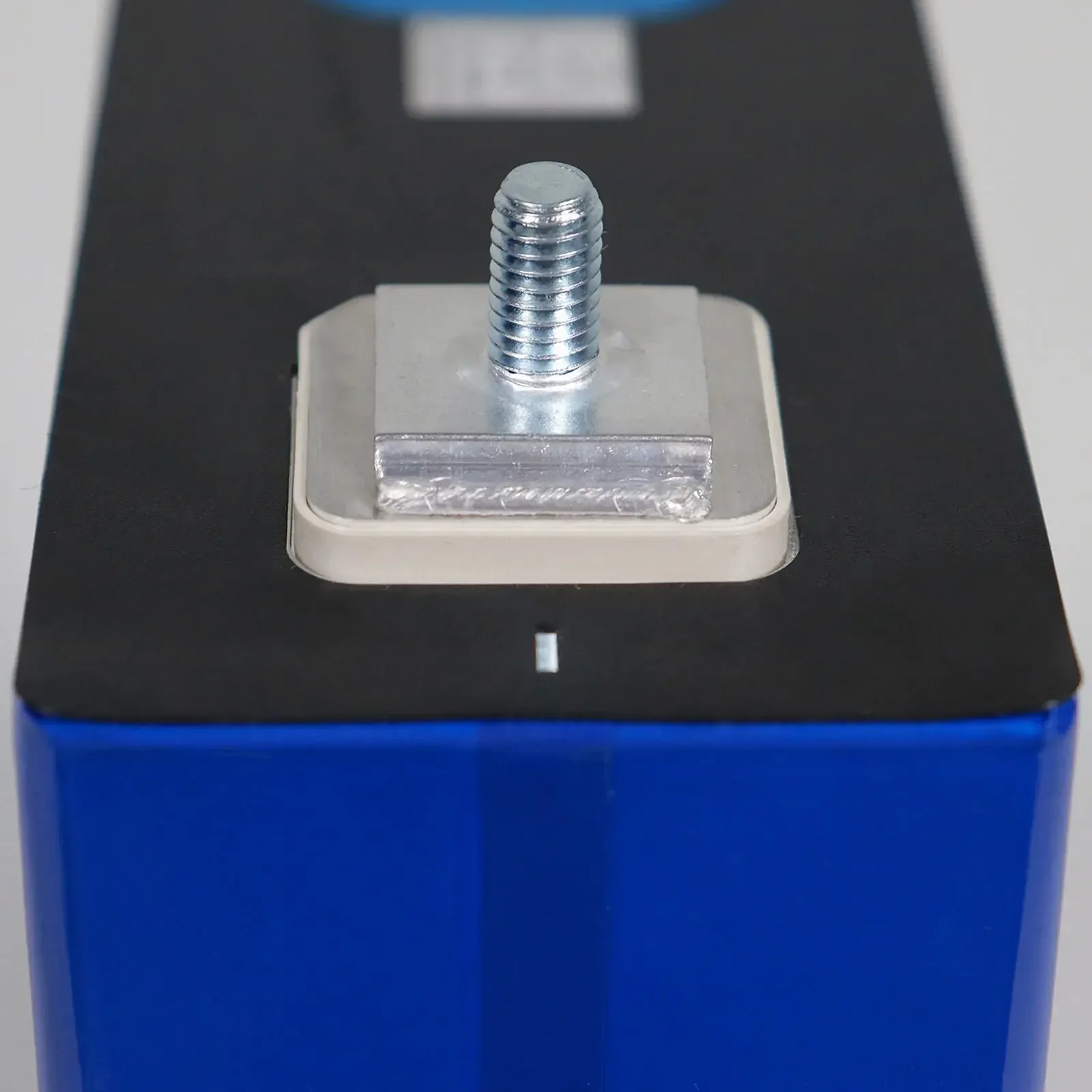

Terminal: M6 Screw Hole
Cycle life: ≥3500 Cycles (1C/1C, 25±2°C, SOC 80%)
Standard Charge/Discharge Current: 0.5C/0.5C
Standard Charge/Discharge Cut-off Voltage: 3.65V/2.5V
Max Continuous Charge/Discharge Current: 1C/1C
Max Pulse Charge/Discharge Ccurrent(30s): 2C/2C
Recommended SOC window: 10%～90%
Charging Temperature: 0℃~60℃
Discharging Temperature: -30℃~60℃
Storage Temperature: -20°C~45°C

Download Document:

EVE 230Ah LiFePO4 Battery Cell Product Specification

Product Application:
Electric vehicle, RV, electric bicycles/scooters, golf carts, boats, trolling Motor, off-gird solar energy storage, and ESS.

Product Feature:

• Highly automated production equipment to ensure battery consistency.
• Square aluminum shell structure, high-precision explosion-proof valve design, good safety performance.
• Low internal resistance, high discharge rate, and stable discharge platform.
• Green environment, ISO14000 approval, products meet GB and UN criteria, and ROHS compliant.
• Long cycle life.

NOTE!

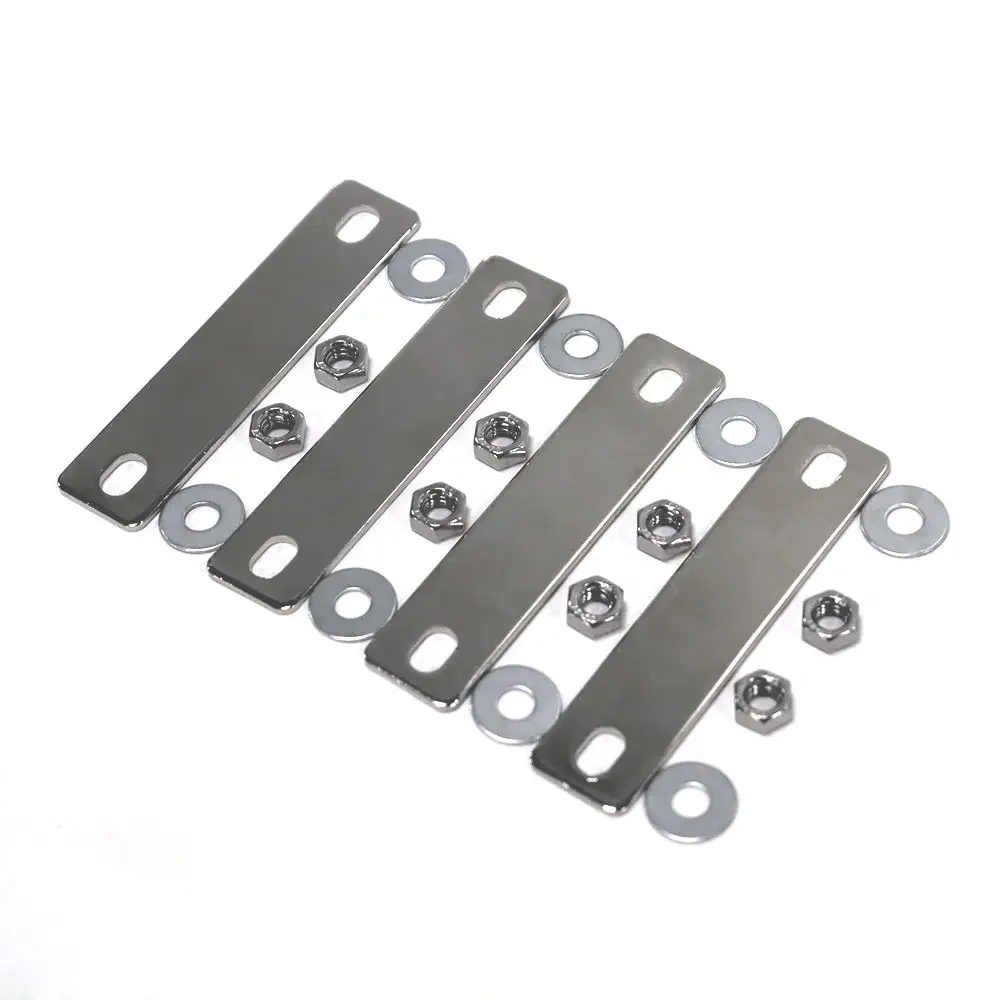

1. One Cell will come with 1 busbar, 2 screw caps, 2 shims for free. (e.g. 4 pcs Cells will come with 4 pcs busbars, 8 pcs screw caps and 8 pcs shims. )
2. Each cell shall be used under the strict monitor, control, and protection by the BMS.
3. Before the first use, always charge the cells to full voltage. | FAQ: LiFePO4 battery charging guide.
4. We will match (capacity, voltage, resistance) all cells before delivery.
5. The battery is suitable for DIY lovers with experience.
